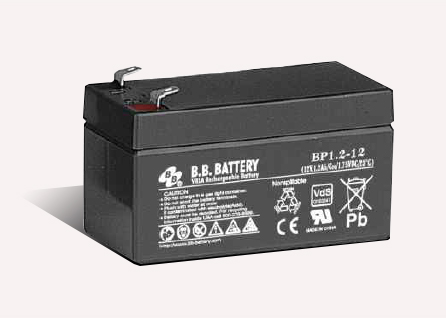

BP1.2-12 BP Series - For General Use

电压： 12 V

额定容量：

1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

重量：	0.59kg (1.30lbs)

尺寸：	97L x 45W x50H x 56TH (mm) 3.82L x 1.77W x1.97H x 2.21TH (inch)

应用范围：警报器, 不间断电源

端子类型： T1

BP1.2-12   BP Series - For General Use

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

	• Absorbent Glass Mat technology for efficient gas recombination.

		Internal Resistance: ≦100mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) BP1.2-12  Optional: Flame Retardant ABS(UL 94-V0) BP1.2-12FR

	All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
重量 : 0.59kg (1.30lbs)
尺寸 : 97L x 45W x50H x 56TH (mm)
                        3.82L x 1.77W x1.97H x 2.21TH (inch)
端子类型 : T1 (Faston Tab 187)
5秒钟放电最大电流 :18 A (5 sec.)
最大充电电流 : 0.36 A
应用范围 :
   警报器, 不间断电源
