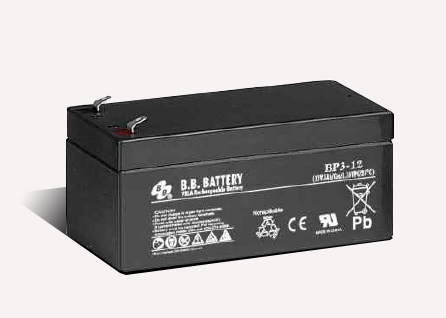

BP3-12 BP Series - For General Use

电压： 12 V

额定容量：

1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

重量：	1.32kg (2.91lbs)

尺寸：	134L x 67W x60H x 66TH (mm) 5.28L x 2.64W x2.36H x 2.60TH (inch)

应用范围：不间断电源, 玩具车, 应急灯, 可充电手电筒, 电动风扇

端子类型： T1, T2 (optional)

BP3-12   BP Series - For General Use

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

	• Absorbent Glass Mat technology for efficient gas recombination.

		Internal Resistance: ≦50mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) BP3-12  Optional: Flame Retardant ABS(UL 94-V0) BP3-12FR

	All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
重量 : 1.32kg (2.91lbs)
尺寸 : 134L x 67W x60H x 66TH (mm)
                        5.28L x 2.64W x2.36H x 2.60TH (inch)
端子类型 : T1 (Faston Tab 187)
5秒钟放电最大电流 :45 A (5 sec.)
最大充电电流 : 0.9 A
应用范围 :
   不间断电源, 玩具车, 应急灯, 可充电手电筒, 电动风扇
