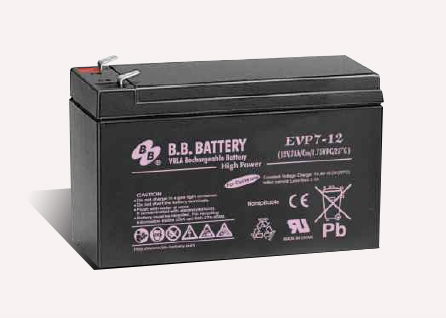

EVP7-12 EVP Series - For High Power, High Cycle Use

电压： 12 V

额定容量：

1(20Hr), 1(5Hr)

重量：	2.75kg (6.06lbs)

尺寸：	151L x 65W x94H x 100TH (mm) 5.94L x 2.56W x3.70H x 3.94TH (inch)

应用范围：不间断电源, 割草机, 实验室设备, 电源包, 鱼捞作业灯

端子类型： T1 (optional), T2

EVP7-12   EVP Series - For High Power, High Cycle Use

		• Absorbent Glass Mat technology for efficient gas recombination.

		• Maintenance free(no water topping-up required).

		• No free acid(Non-spillable battery).

		• Low self-discharge rate, lower than 3% capacity loss per month.

		• Can be used in any orientation(excluding used inverted).

		• The battery is designed for heavy duty cyclic application.

		Internal Resistance: ≦15mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) EVP7-12  Optional: Flame Retardant ABS(UL 94-V0) EVP7-12FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(5Hr)
重量 : 2.75kg (6.06lbs)
尺寸 : 151L x 65W x94H x 100TH (mm)
                        5.94L x 2.56W x3.70H x 3.94TH (inch)
端子类型 : T2(Faston Tab 250) T1 is optional
5秒钟放电最大电流 :105 A (5 sec.)
最大充电电流 : 2.1 A
应用范围 :
   不间断电源, 割草机, 实验室设备, 电源包, 鱼捞作业灯
