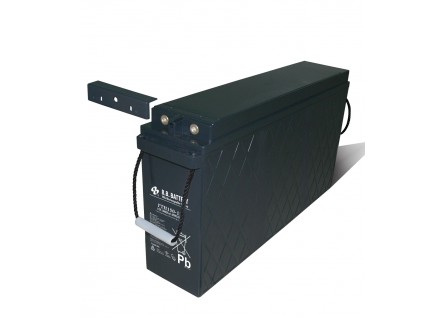

FTH150-12 FTH Series - Front Terminal High Temperature

电压： 12 V

额定容量：

1(10Hr)

重量：	53.5kg (117.97lbs)

尺寸：	560L x 125W x290H x 290TH (mm) 22.05L x 4.92W x11.42H x 11.42TH (inch)

应用范围：不间断电源, 太阳能, 电信行业, 储能系统, 发电站, 数据中心

端子类型： I2

FTH150-12   FTH Series - Front Terminal High Temperature

	• Excellent high temperature performance

	• Special sealing compound to prevent any leaks

	• High compression and puncture resistance separator

	• Reinforced case resists high temperature condition

	• Special alloy inhibits corrosion under the highest temperature extremes

	• Electrolyte additive to prevent internal short circuit at high temperature

	• Advanced manufacturing techniques to ensure quality products

	• Broad operating temperature from -40℃ to 65℃

		Internal Resistance: ≦4mΩ ( Fully Charged )

		Operating Temperature Range:

		 -40°C~65°C(-40°F~149°F)

		Container Material:  Standard: ABS( UL 94-HB) FTH150-12  Optional: Flame Retardant ABS(UL 94-V0) FTH150-12FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(10Hr)
重量 : 53.5kg (117.97lbs)
尺寸 : 560L x 125W x290H x 290TH (mm)
                        22.05L x 4.92W x11.42H x 11.42TH (inch)
端子类型 : I2 (M6 Female Thread)
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 45 A
应用范围 :
   不间断电源, 太阳能, 电信行业, 储能系统, 发电站, 数据中心
