Zelus GEL Battery
Zelus GEL Battery

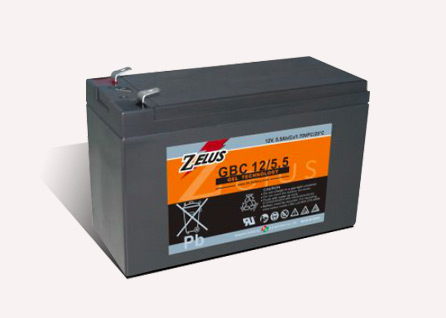

GBC12/5.5 Zelus GEL Battery

电压: 12 V
额定容量 1(5Hr)
重量 2.45kg (54.01lbs)
尺寸 151L x 65W x93H x 98TH (mm)
5.94 L x 2.56W x3.66H x 3.86TH (inch)
应用范围: 高尔夫球车, 自动清扫器, 轮椅, 房车, 可再生能源
端子类型: T1 (optional),  T2

GBC12/5.5 Zelus GEL Battery

• GBC is designed with solid lead plated and gelled electrolyte technology.
• A deep-cycle lead-acid battery is designed to deliver a maximum capacity and cycles as discharging.
• High temperature stability, mechanical strength and low acid displacement.
• Superior performance with deep discharges.
• Patented safety valve to have accurate pressure operating for long battery life.

Internal Resistance: ≦3.5mΩ ( Fully Charged )

Self Discharge: <2% per month (25°C)

Operating Temperature Range:  -20°C~55°C(-4°F~131°F)

Container Material:  Standard: ABS( UL 94-HB) GBC 12/5.5  Optional: Flame Retardant ABS(UL 94»VO) GBC 12/5.5FR


All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.



电压 : 12 V

额定容量 : 1(5Hr)

重量 : 2.45kg (54.01lbs)

尺寸 : 151L x 65W x93H x 98TH (mm)
                        5.94 L x 2.56W x3.66H x 3.86TH (inch)

端子类型 : T2 (Faston Tab 187) T1 is optional

5秒钟放电最大电流 :105 A (5 sec.)

最大充电电流 : 1.1 A

应用范围 : 高尔夫球车, 自动清扫器, 轮椅, 房车, 可再生能源
