Zelus GEL Battery
Zelus GEL Battery

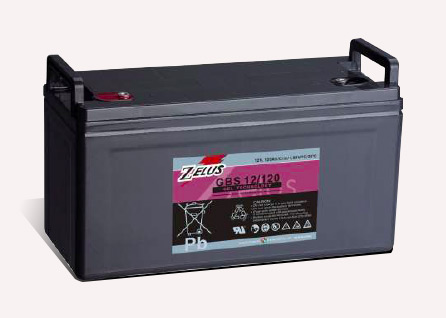

GBS12/120 Zelus GEL Battery

电压: 12 V
重量 39kg (8.98lbs)
尺寸 407L x 173W x210H x 239TH (mm)
16.02L x 6.81W x8.27H x 9.41TH (inch)
应用范围: 太阳能, 风能, 电信行业, 交通信号灯, 路灯
端子类型: I2

GBS12/120 Zelus GEL Battery

• GBS delivers long cycle life and prolong life in elevated ambient temperatures.
• The generated heat can easy flow to the case walls because the whole volume of the cell is filled with gel.
• The immobilization of the electroiyte in the gel makes acid stratification impossible
• Maintenance free(no water topping-up required).
• Low self-discharge rate, lower than 2% capacity loss per month.
• A small distribution of the special valve opening and closing pressure is important for a good (cycle) life time of the battery.

Internal Resistance: ≦5mΩ ( Fully Charged )

Operating Temperature Range:  -20°C~55°C(-4°F~131°F)

Container Material:  Standard: ABS( UL 94-HB) GBS 12/120  Optional: Flame Retardant ABS(UL 94»VO) GBS 12/120FR

All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V

重量 : 39kg (8.98lbs)

尺寸 : 407L x 173W x210H x 239TH (mm)
                        16.02L x 6.81W x8.27H x 9.41TH (inch)

端子类型 : I2

5秒钟放电最大电流 :800 A (5 sec.)

最大充电电流 : 24 A

应用范围 : 太阳能, 风能, 电信行业, 交通信号灯, 路灯
