FTH Series - Front Terminal High Temperature
FTH Series - Front Terminal High Temperature

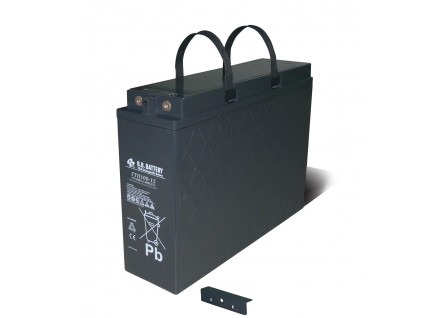

FTH100-12 FTH Series - Front Terminal High Temperature

电压: 12 V
额定容量 1(10Hr)
重量 35.4kg (78.04lbs)
尺寸 394L x 110W x285H x 285TH (mm)
15.51L x 4.33W x11.22H x 11.22TH (inch)
应用范围: 不间断电源, 太阳能, 电信行业, 储能系统, 发电站, 数据中心
端子类型: I2

FTH100-12 FTH Series - Front Terminal High Temperature

• Excellent high temperature performance
• Special sealing compound to prevent any leaks
• High compression and puncture resistance separator
• Reinforced case resists high temperature condition
• Special alloy inhibits corrosion under the highest temperature extremes
• Electrolyte additive to prevent internal short circuit at high temperature
• Advanced manufacturing techniques to ensure quality products
• Broad operating temperature from -40℃ to 65℃


Internal Resistance: ≦4.2mΩ ( Fully Charged )


Operating Temperature Range:



 -40°C~65°C(-40°F~149°F)


Container Material:  Standard: ABS( UL 94-HB) FTH100-12  Optional: Flame Retardant ABS(UL 94-V0) FTH100-12FR


All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.







电压 : 12 V

额定容量 : 1(10Hr)

重量 : 35.4kg (78.04lbs)

尺寸 : 394L x 110W x285H x 285TH (mm)
                        15.51L x 4.33W x11.22H x 11.22TH (inch)

端子类型 : I2 (M6 Female Thread)

5秒钟放电最大电流 :800 A (5 sec.)

最大充电电流 : 30 A

应用范围 : 不间断电源, 太阳能, 电信行业, 储能系统, 发电站, 数据中心
