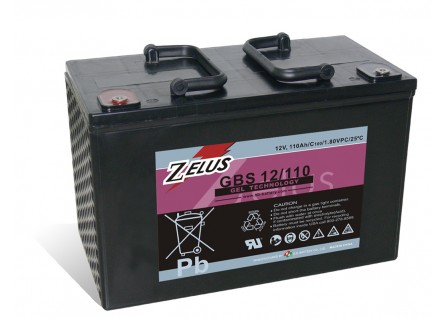

GBS12/110 Zelus GEL Battery

电压： 12 V

重量：	35.5kg (78.26lbs)

尺寸：	330L x 173W x212H x B3:241, I2:218TH (mm) 12.99L x 6.81W x8.35H x B3:9.49, I2:8.59TH (inch)

应用范围：太阳能, 风能, 电信行业, 交通信号灯, 路灯

端子类型： I2 (optional), B3

GBS12/110   Zelus GEL Battery

	• The sulfuric acid is mixed with silica fume, which makes the resulting mass gel-like and immobile.

	• Increased durability and deep cycle ability for heavy demand. High temperature stability, mechanical strength and low acid displacement.

	• Superior performance with deep discharges.

	• Patented safety valve to have accurate pressure operating for long battery life.

	Internal Resistance: ≦11mΩ ( Fully Charged )

	Self Discharge: <2% per month (25°C)

	Operating Temperature Range:  -20°C~55°C(-4°F~131°F)

		Container Material:  Standard: ABS( UL 94-HB) GB 12/30  Optional: Flame Retardant ABS(UL 94-VO) GB 12/30FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
重量 : 35.5kg (78.26lbs)
尺寸 : 330L x 173W x212H x B3:241, I2:218TH (mm)
                        12.99L x 6.81W x8.35H x B3:9.49, I2:8.59TH (inch)
端子类型 : B3 (Fitting M6 bolt & nut) I2 is optional
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 20.0 A
应用范围 :
   太阳能, 风能, 电信行业, 交通信号灯, 路灯
