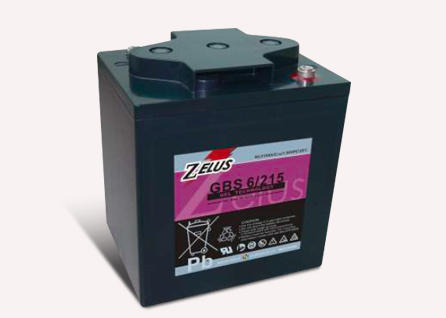

GBS6/215 Zelus GEL Battery

电压： 6 V

重量：	32.8kg (72.31lbs)

尺寸：	244L x 190.0W x275.0H x 275.0TH (mm) 9.61L x 7.48W x10.83H x 10.83TH (inch)

应用范围：太阳能, 风能, 电信行业, 交通信号灯, 路灯

端子类型： I3, I4 (optional)

GBS6/215   Zelus GEL Battery

			• GBS delivers long cycle life and prolong life in elevated ambient temperatures.

			• The generated heat can easy flow to the case walls because the whole volume of the cell is filled with gel.

			• The immobilization of the electroiyte in the gel makes acid stratification impossible

			• Maintenance free(no water topping-up required).

			• Low self-discharge rate, lower than 2% capacity loss per month.

			• A small distribution of the special valve opening and closing pressure is important for a good (cycle) life time of the battery.

			Internal Resistance: ≦2mΩ ( Fully Charged )

			Operating Temperature Range:  -20°C~55°C(-4°F~131°F)

			Container Material:  Standard: ABS( UL 94-HB) GBS 12/75  Optional: Flame Retardant ABS(UL 94»VO) GBS 12/75FR

			All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 6 V
重量 : 32.8kg (72.31lbs)
尺寸 : 244L x 190.0W x275.0H x 275.0TH (mm)
                        9.61L x 7.48W x10.83H x 10.83TH (inch)
端子类型 : I3 (I4 is optional)
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 43 .0 A
应用范围 :
   太阳能, 风能, 电信行业, 交通信号灯, 路灯
