Zelus GEL Battery
Zelus GEL Battery

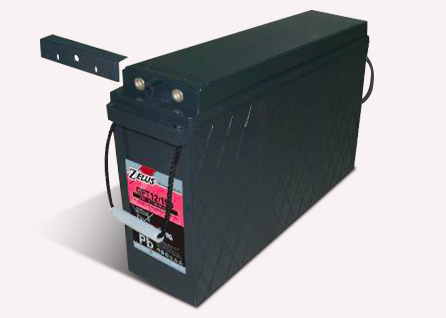

GFT12/150 Zelus GEL Battery

电压: 12 V
额定容量 1(10Hr)
重量 52.0kg (114.24lbs)
尺寸 560L x 125W x290H x 290TH (mm)
22.05L x 4.92W x11.42H x 11.42TH (inch)
应用范围: 不间断电源, 应急灯, 保全系统, 医疗设备, 电信行业
端子类型: I3

GFT12/150 Zelus GEL Battery

• GFT was designed with solid lead plated and gelled electrolyte technology.
• A deep-cycle lead-acid battery is designed to deliver a maximum capacity and cycles as discharging.
• High temperature stability, mechanical strength and low acid displacement.
• Superior performance with deep discharges.
• Patented safety valve to have accurate pressure operating for long battery life.


Internal Resistance: ≦6mΩ ( Fully Charged )


Self Discharge: <2% per month (25°C)


Operating Temperature Range:  -20°C~55°C(-4°F~131°F)


Container Material:  Standard: ABS( UL 94-HB) GFT 12/150  Optional: Flame Retardant ABS(UL 94»VO) GFT 12/150FR


All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.



电压 : 12 V

额定容量 : 1(10Hr)

重量 : 52.0kg (114.24lbs)

尺寸 : 560L x 125W x290H x 290TH (mm)
                        22.05L x 4.92W x11.42H x 11.42TH (inch)

端子类型 : I3 (M8 Male Stud)

5秒钟放电最大电流 :800 A (5 sec.)

最大充电电流 : 30.0 A

应用范围 : 不间断电源, 应急灯, 保全系统, 医疗设备, 电信行业
