Zelus GEL Battery
Zelus GEL Battery

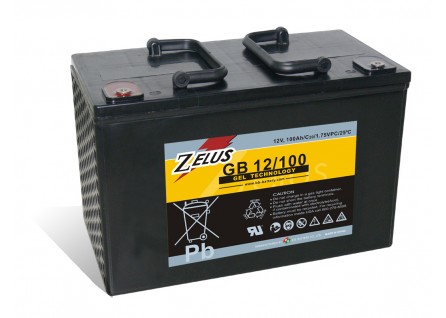

GB12/100 Zelus GEL Battery

电压: 12 V
额定容量 1(20Hr), 1(10Hr)
重量 35.5kg (78.26lbs)
尺寸 330L x 173W x212H x B3:241, I2:218TH (mm)
12.99L x 6.81W x8.35H x B3:9.49, I2:8.59TH (inch)
应用范围: 警报器, 不间断电源, 应急灯, 医疗设备, 电信行业
端子类型: I2 (optional),  B3

GB12/100 Zelus GEL Battery

• The sulfuric acid is mixed with silica fume, which makes the resulting mass gel-like and immobile.
• Increased durability and deep cycle ability for heavy demand. High temperature stability, mechanical strength and low acid displacement.
• Superior performance with deep discharges.
• Patented safety valve to have accurate pressure operating for long battery life.

Internal Resistance: ≦11mΩ ( Fully Charged )


Self Discharge: <2% per month (25°C)


Operating Temperature Range:  -20°C~55°C(-4°F~131°F)


Container Material:  Standard: ABS( UL 94-HB) GB 12/30  Optional: Flame Retardant ABS(UL 94-VO) GB 12/30FR





All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.





电压 : 12 V

额定容量 : 1(20Hr), 1(10Hr)

重量 : 35.5kg (78.26lbs)

尺寸 : 330L x 173W x212H x B3:241, I2:218TH (mm)
                        12.99L x 6.81W x8.35H x B3:9.49, I2:8.59TH (inch)

端子类型 : B3 (Fitting M6 bolt & nut) I2 is optional

5秒钟放电最大电流 :800 A (5 sec.)

最大充电电流 : 20.0 A

应用范围 : 警报器, 不间断电源, 应急灯, 医疗设备, 电信行业
