Zelus GEL Battery
Zelus GEL Battery

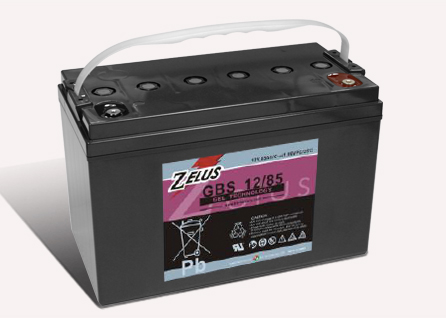

GBS12/85 Zelus GEL Battery

电压: 12 V
重量 29.5kg (65.04lbs)
尺寸 329L x 172W x214.5H x 219TH (mm)
12.95L x 6.77W x8.44H x 8.6TH (inch)
应用范围: 太阳能, 风能, 电信行业, 交通信号灯, 路灯
端子类型: I2

GBS12/85 Zelus GEL Battery

• GBS delivers long cycle life and prolong life in elevated ambient temperatures.
• The generated heat can easy flow to the case walls because the whole volume of the cell is filled with gel.
• The immobilization of the electroiyte in the gel makes acid stratification impossible
• Maintenance free(no water topping-up required).
• Low self-discharge rate, lower than 2% capacity loss per month.
• A small distribution of the special valve opening and closing pressure is important for a good (cycle) life time of the battery.


Internal Resistance: ≦6.0mΩ ( Fully Charged )

Self Discharge: < 2% per month (25°C)

Operating Temperature Range:

 Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) GBS 12/75  Optional: Flame Retardant ABS(UL 94»VO) GBS 12/75FR


All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.



电压 : 12 V

重量 : 29.5kg (65.04lbs)

尺寸 : 329L x 172W x214.5H x 219TH (mm)
                        12.95L x 6.77W x8.44H x 8.6TH (inch)

端子类型 : l2

5秒钟放电最大电流 :700 A (5 sec.)

最大充电电流 : 17.0 A

应用范围 : 太阳能, 风能, 电信行业, 交通信号灯, 路灯
