SHR Series - For High Rate Use
SHR Series - For High Rate Use

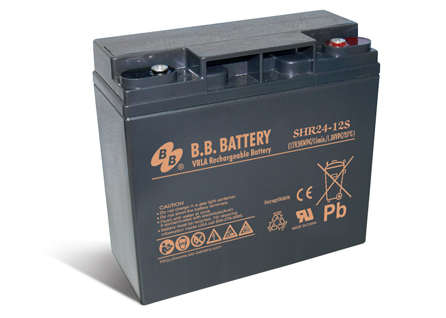

SHR24-12S SHR Series - For High Rate Use

Voltage： 12 V
Nominal Capacity：
Approx. Weight： 6.95kg (15.3lbs)
Dimensions： 181L x 76W x166H x 166TH (mm)
7.13L x 2.99W x6.54H x 6.54TH (inch)
Application： UPS, Toy-Car, Laboratory Equipment, Power Pack, Fishing Light
Terminal： I1 (optional),  I2

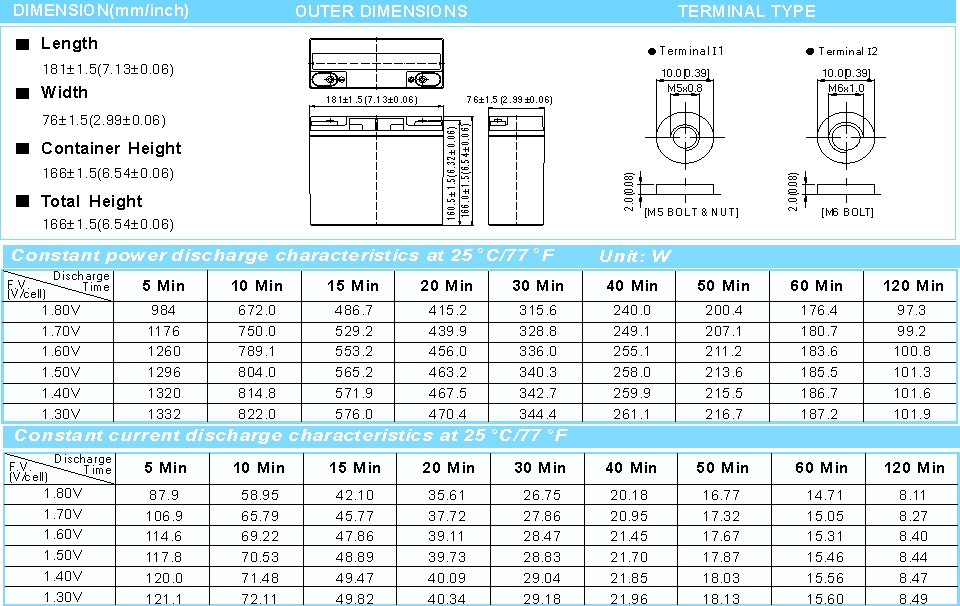

Specification Download

SHR24-12S SHR Series - For High Rate Use

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Can be used in any orientation(excluding used inverted).
• The battery is designed for high rate usage.
• Absorbent Glass Mat technology for efficient gas recombination.
• The power density at 2min~15min discharging rate is 50% higher than BP series.

Internal Resistance: ≦12mΩ ( Fully Charged )

Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)

Container Material:  Standard: ABS( UL 94-HB) SHR24-12S  Optional: Flame Retardant ABS(UL 94-V0) SHR24-12S



All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.





Voltage : 12 V

Approx. Weight : 6.95kg (15.3lbs)

Dimensions : 181L x 76W x166H x 166TH (mm)
                        7.13L x 2.99W x6.54H x 6.54TH (inch)

Terminal : I2 (M6 Female Thread), I1 is optional

Max Charge Current : 7.20 A

Application : UPS, Toy-Car, Laboratory Equipment, Power Pack, Fishing Light
