Zelus GEL Battery
Zelus GEL Battery

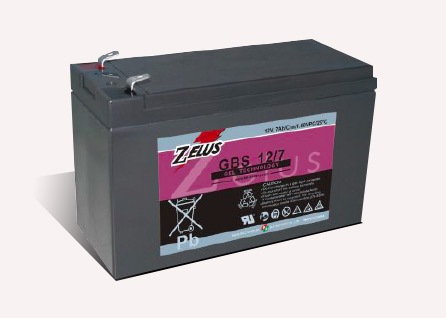

GBS12/7 Zelus GEL Battery

Voltage: 12 V
Nominal Capacity
Approx. Weight 2.45kg (54.01lbs)
Dimensions 151L x 65W x93H x 98TH (mm)
5.94 L x 2.56W x3.66H x 3.86TH (inch)
Application: Solar, Wind Power, Telecom, Traffic Light, Street Lighting
Terminal: T1 (optional),  T2

Specification Download

GBS12/7 Zelus GEL Battery

• GBS delivers long cycle life and prolong life in elevated ambient temperatures.
• The generated heat can easy flow to the case walls because the whole volume of the cell is filled with gel.
• The immobilization of the electroiyte in the gel makes acid stratification impossible
• Maintenance free(no water topping-up required).
• Low self-discharge rate, lower than 2% capacity loss per month.
• A small distribution of the special valve opening and closing pressure is important for a good (cycle) life time of the battery.

Internal Resistance: ≦32mΩ ( Fully Charged )

Operating Temperature Range:  -20°C~55°C(-4°F~131°F)

Container Material:  Standard: ABS( UL 94-HB) GBS 12/7  Optional: Flame Retardant ABS(UL 94»VO) GBS 12/7FR

All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

Voltage : 12 V

Approx. Weight : 2.45kg (54.01lbs)

Dimensions : 151L x 65W x93H x 98TH (mm)
                        5.94 L x 2.56W x3.66H x 3.86TH (inch)

Terminal : T2 (Faston Tab 187) T1 is optional

Max Discharge Current for 5 Sec :105 A (5 sec.)

Max Charge Current : 1.4 A

Application : Solar, Wind Power, Telecom, Traffic Light, Street Lighting
