Zelus GEL Battery
Zelus GEL Battery

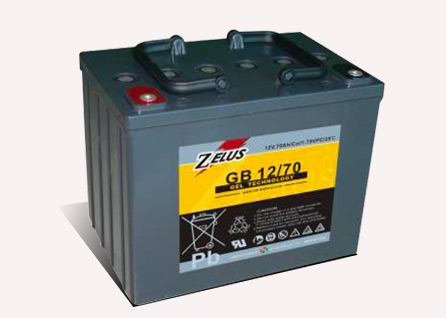

GB12/70 Zelus GEL Battery

Voltage: 12 V
Nominal Capacity 1(20Hr), 1(10Hr)
Approx. Weight 24.0kg (52.91lbs)
Dimensions 259.5L x 172.6W x200.5H x 217.0TH (mm)
10.22L x 6.80W x7.89H x 8.54TH (inch)
Application: Alarm/Security, UPS, Emergency Light, Medical Equipment, Telecom
Terminal: I2

Specification Download

GB12/70 Zelus GEL Battery

• The sulfuric acid is mixed with silica fume, which makes the resulting mass gel-like and immobile.
• Increased durability and deep cycle ability for heavy demand. High temperature stability, mechanical strength and low acid displacement.
• Superior performance with deep discharges.
• Patented safety valve to have accurate pressure operating for long battery life.

Internal Resistance: ≦6mΩ ( Fully Charged )


Self Discharge: <2% per month (25°C)


Operating Temperature Range:  -20°C~55°C(-4°F~131°F)


Container Material:  Standard: ABS( UL 94-HB) GB 12/70  Optional: Flame Retardant ABS(UL 94-VO) GB 12/70FR


All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.





Voltage : 12 V

Nominal Capacity : 1(20Hr), 1(10Hr)

Approx. Weight : 24.0kg (52.91lbs)

Dimensions : 259.5L x 172.6W x200.5H x 217.0TH (mm)
                        10.22L x 6.80W x7.89H x 8.54TH (inch)

Terminal : I2

Max Discharge Current for 5 Sec :400 A (5 sec.)

Max Charge Current : 14.0 A

Application : Alarm/Security, UPS, Emergency Light, Medical Equipment, Telecom
