Zelus GEL Battery
Zelus GEL Battery

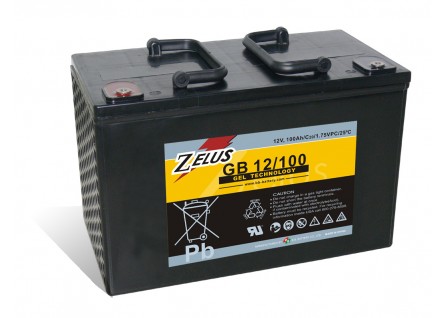

GB12/100 Zelus GEL Battery

Voltage： 12 V
Nominal Capacity： 1(20Hr), 1(10Hr)
Approx. Weight： 35.5kg (78.26lbs)
Dimensions： 330L x 173W x212H x B3:241, I2:218TH (mm)
12.99L x 6.81W x8.35H x B3:9.49, I2:8.59TH (inch)
Application： Alarm/Security, UPS, Emergency Light, Medical Equipment, Telecom
Terminal： I2 (optional),  B3

Specification Download

GB12/100 Zelus GEL Battery

• The sulfuric acid is mixed with silica fume, which makes the resulting mass gel-like and immobile.
• Increased durability and deep cycle ability for heavy demand. High temperature stability, mechanical strength and low acid displacement.
• Superior performance with deep discharges.
• Patented safety valve to have accurate pressure operating for long battery life.

Internal Resistance: ≦11mΩ ( Fully Charged )

Self Discharge: <2% per month (25°C)

Operating Temperature Range:  -20°C~55°C(-4°F~131°F)

Container Material:  Standard: ABS( UL 94-HB) GB 12/30  Optional: Flame Retardant ABS(UL 94-VO) GB 12/30FR




All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.





Voltage : 12 V

Nominal Capacity : 1(20Hr), 1(10Hr)

Approx. Weight : 35.5kg (78.26lbs)

Dimensions : 330L x 173W x212H x B3:241, I2:218TH (mm)
                        12.99L x 6.81W x8.35H x B3:9.49, I2:8.59TH (inch)

Terminal : B3 (Fitting M6 bolt & nut) I2 is optional

Max Discharge Current for 5 Sec :800 A (5 sec.)

Max Charge Current : 20.0 A

Application : Alarm/Security, UPS, Emergency Light, Medical Equipment, Telecom
