EB Series - For Mobility Use
EB Series - For Mobility Use

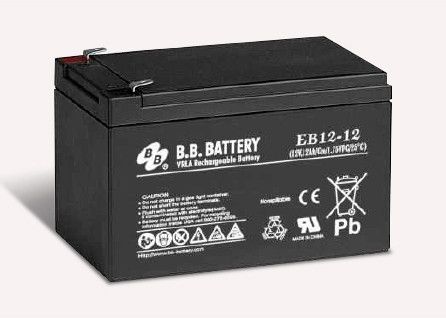

EB12-12 EB Series - For Mobility Use

Voltage: 12 V
Nominal Capacity 1(20Hr)
Approx. Weight 4.3kg (9.84lbs)
Dimensions 151L x 98W x94H x 98TH (mm)
5.94L x 3.86W x3.70H x 3.86TH (inch)
Application: Golf Cart, UPS, E-bike, Wheelchair, Lawn Mower, Electrical Scooter
Terminal: T2

Specification Download

EB12-12 EB Series - For Mobility Use

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Low self-discharge rate, lower than 3% capacity loss per month.
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.


Internal Resistance: 8mΩ ( Fully Charged )


Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)


Container Material:  Standard: ABS( UL 94-HB) EB12-12  Optional: Flame Retardant ABS(UL 94-V0) EB12-12FR


All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.




Voltage : 12 V

Nominal Capacity : 1(20Hr)

Approx. Weight : 4.3kg (9.84lbs)

Dimensions : 151L x 98W x94H x 98TH (mm)
                        5.94L x 3.86W x3.70H x 3.86TH (inch)

Terminal : T2 (Faston Tab 250)

Max Discharge Current for 5 Sec :180 A (5 sec.)

Max Charge Current : 3.6 A

Application : Golf Cart, UPS, E-bike, Wheelchair, Lawn Mower, Electrical Scooter
